WHILE STOCKS LAST

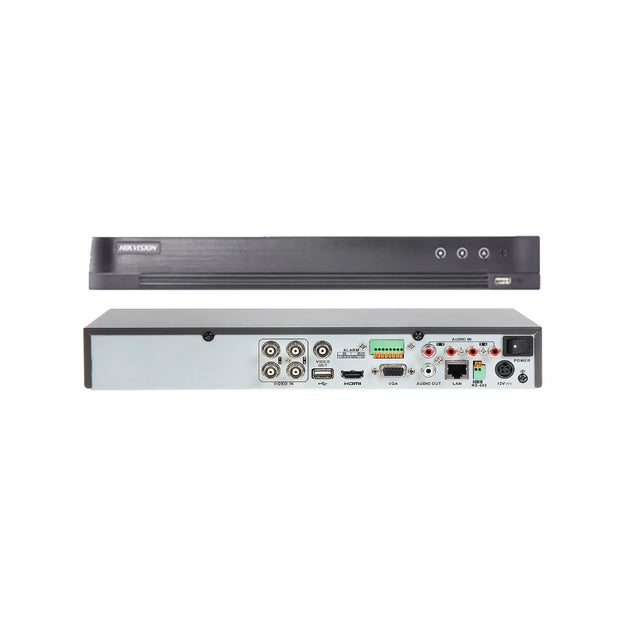

DVR FEATURES IDS-7208HUHI-M1-S

• Acusense Deep-Learning technology false alarm reduction (4 channels)
• Analogue/TVI Recorder
• H265Pro+ compression saving >50% bandwidth and storage.
• Recording 8MP@8FPS
• Support 8MP HD-TVI, 5MP AHD, 4MP CVI and analog CVBS cameras with adaptive access.
• Add up to 4 x 8MP IP cameras (separate POE switch required, not included).
• Can connect 12 x IP cameras in pure IP mode (no analogue cameras).
• HDMI output up to 4K, VGA output up to 1080P resolution.
• Up to 8-ch synchronous playback at 1080p resolution playback at up to 256X speed.Up to 8-ch synchronous playback at 1080p resolution playback at up to 256X speed.
• Hik-Connect Free App for mobile viewing
• IVMS-4200 Free software for Mac & PC viewing

CAMERA FEATURES DS-2CE72UF3T-E

• 4K ColorVu PoC Fixed Turret Camera
• High Quality Imaging with 8MP, [3840 × 2160] Resolution
• 24/7 color imaging
• Clear Imaging Against Strong back Light due to 130 dB true WDR Technology
• 3D DNR technology delivers clean and sharp Images
• 2.8mm fixed focal lens
• Up to 40M white light distance for bright night imaging
• Water and dust resistant [IP67]

2 YEAR WARRANTY

MOBILE FEATURES

• Live view of your cameras from the Hik Connect app anywhere in the world
• Receive notifications on your phone when movement is detected
• Share mobile access to as many users as you require

*PLEASE NOTE*

If the 8 channel option is not selectable, please choose the 4 camera option first and then the 8 channel option will be available to select

Package Includes:

• Choice of DVR (IDS-7204HQHI-K1, IDS-7208HQHI-K1)
• DS-2CE72KF3T Camera (White or Grey)
• Surveillance Hard Drive (Pre Installed If Selected)
• 20m Premade Cable per Camera
• 1x 5amp Power Supply
• 1x 4 Way Splitter
• 1x 2m HDMI Cable

Camera Features

• 5mp full-time colour turret camera
• 2.8mm fixed lens
• 24-hour colour image
• Colour day/night
• Warm supplemental light with a 20m range
• Smart Light
• Up to 40m recording distance
• Water and dust resistant
• IP67 weatherproof
• Clear imaging even against strong backlighting due to 130db true WDR technology
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
• 12V DC
• 2 Year Warranty

Mobile Features

• Live view of your cameras from the Hik Connect app anywhere in the world

• Receive notifications on your phone when movement is detected

• Share mobile access to as many users as you require

*PLEASE NOTE*

If the 8 channel option is not selectable, please choose the 4 camera option first and then the 8 channel option will be available to select

Package Includes:

• Choice of DVR (IDS-7204HQHI-K1, IDS-7208HQHI-K1)
• DS-2CE72HFT-F28 Camera (White or Grey)
• Surveillance Hard Drive (Pre Installed If Selected)
• 20m Premade Cable per Camera
• 1x 5amp Power Supply
• 1x 4 Way Splitter
• 1x 2m HDMI Cable

Camera Features

• 5mp full-time colour turret camera
• 2.8mm fixed lens
• 24-hour colour image
• Colour day/night
• Warm supplemental light with a 20m range
• Smart Light
• Up to 40m recording distance
• Water and dust resistant
• IP67 weatherproof
• Clear imaging even against strong backlighting due to 130db true WDR technology
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
• 12V DC
• 2 Year Warranty

Mobile Features

• Live view of your cameras from the Hik Connect app anywhere in the world

• Receive notifications on your phone when movement is detected

• Share mobile access to as many users as you require

*PLEASE NOTE*

If the 8 channel option is not selectable, please choose the 4 camera option first and then the 8 channel option will be available to select

4K 8MP Fixed Turret Camera THC-T180-M

Features

• 8MP turret camera
• EXIR 2.0: advanced technology with 30m IR distance
• Water and dust resistant (IP67)
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Hilook 8MP H.265 Pro+ 4ch DVR 204U-M1/208U-M1/216U-M2

Features

• 5 signal input adaptively (HD-TVI/AHD/CVI/CVBS/IP)
• L transmission over UTP and coaxial cable
• H.265 Pro+ Compression to improve encoding efficiency and reduce data storage costs
• Encoding ability up to 8 MP @ 8 FPS
• One HDD for continuous video recording
• Smart search for efficient playback
• 2 Year Warranty

What is Included:

• 1x DVR 4/8/16 Channel
• 1 X Surveillance Hard Drive
• THC-T180-M Camera
• Power Supply with Splitter
• 1x 2m HDMI cable
• 20m BNC Cable (Per Camera)
• 1x 3PIN UK TYPE Manual & Mouse

Mobile Features

• Live view of your cameras from the Hik Connect app anywhere in the world

• Receive notifications on your phone when movement is detected

• Share mobile access to as many users as you require

• High quality imaging with 8 MP, 3840 × 2160 resolution
• 24/7 color imaging
• Clear imaging against strong back light due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• 2.8 mm, fixed focal lens
• Up to 40 m white light distance for bright night imaging
• Water and dust resistant (IP67)
• 2 Year Warranty
• PRODUCT DESCRIPTIONS

• Camera
  Image Sensor	8 MP CMOS
  Signal System	PAL/NTSC
  Resolution	3840 (H) × 2160 (V)
  Frame Rate	TVI: 8 MP @ 12.5 fps/15 fps, 3K @ 20 fps, 1080P @ 25 fps/30 fps
  Min. Illumination	0.0005 Lux@(F1.0, AGC ON), 0 Lux with white light
  Shutter Time	PAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
  Lens	2.8 mm, 3.6 mm fixed focal lens
  Field Of View	2.8 mm, horizontal FOV: 110°, vertical FOV: 59°, diagonal FOV: 131°
  	3.6 mm, horizontal FOV: 93°, vertical FOV: 48°, diagonal FOV: 113°
  Lens Mount	M16
  Light Alarm	Solid Light Alarm (White Light)
  Day & Night	24/7 Color Imaging
  WDR (Wide Dynamic Range)	≥130 dB
  Angle Adjustment	Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
  White Light	Auto/Off
  Image Mode	STD/HIGH-SAT/HIGHLIGHT
  AGC	Yes
  Day/Night Mode	Color
  White Balance	Auto/Manual
  AE (Auto Exposure) Mode	WDR;BLC;HLC;Global;HLS
  Privacy Mask	4 programmable privacy masks
  Motion Detection	4 programmable motion areas
  Noise Reduction	3D DNR/2D DNR
  Language	English
  Function	Sharpness;Mirror;Brightness;Anti-Banding;Smart Light;Contrast
  Interface
  Video Output	1 HD analog output
  General
  Operating Conditions	-40°C to 50°C (-40°F to 130°F), Humidity: 90% or less (non-condensing)
  Power Supply	12 VDC ± 25%/PoC.at
  	*You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.
  Consumption	Max. 5.1 W
  Protection Level	IP67
  Material	Main body: Metal, Enclosure: Plastic
  White Light Range	Up to 40 m
  Communication	HIKVISION-C
  Dimension	194.2 mm × 78 mm × 74.5 mm (7.65" × 3.07" × 2.93")
  	Approx. 350 g (0.77 lb.)




DESCRIPTION

The Hikvision DS-1280ZJ-TR13 is a junction box and extension base that is designed to protect the connections of compatible cameras. The DS-1280ZJ-TR13 fits a wide range of cameras (Please contact us before purchasing, to ensure you choose the right base for your camera)


SPECIFICATION

• Parameters:  Junction box
• Colour: White, Black & Grey
• Feature: Suitable for turret cameras
• Material: Aluminium Alloy
• Dimension:  Ø110 x 144.3 x 48mm
• Weight:  247g

Package Includes:

• 16 Channel DVR (IDS-7216HQHI-M1)
• DS-2CE72KF3T Camera (White or Grey)
• Surveillance Hard Drive (Pre Installed If Selected)
• 20m Premade Cable per Camera
• 1x 5amp Power Supply
• 1x 4 Way Splitter
• 1x 2m HDMI Cable

Camera Features

• 5mp full-time colour turret camera
• 2.8mm fixed lens
• 24-hour colour image
• Colour day/night
• Warm supplemental light with a 20m range
• Smart Light
• Up to 40m recording distance
• Water and dust resistant
• IP67 weatherproof
• Clear imaging even against strong backlighting due to 130db true WDR technology
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
• 12V DC
• 2 Year Warranty

Mobile Features

• Live view of your cameras from the Hik Connect app anywhere in the world

• Receive notifications on your phone when movement is detected

• Share mobile access to as many users as you require

DESCRIPTION

DS-7604NXI-K1

4CH IP to 8MP, 40/80Mbps I/O, 4 x PoE
HDMI & VGA Out, 1 SATA- Up to 4 channel IP cameras can be connected

What is Included:

• 1x DVR 4/8/16 Channel
• 1 X Surveillance Hard Drive (Optional)
• 1x 2m HDMI cable
• 1x 3PIN UK TYPE Manual & Mouse

DESCRIPTION

The Hikvision DS-2CE78H0T-IT3E camera is an HD Analogue (TVI) Camera up to 5MP CMOS Image Sensor Resolution which comes in a Turret Dome Camera design with  a Smart EXIR up to 40m.

5MP Resolution is available at 20fps, and 4MP Resolution at 25fps. The camera has a single BNC output and must be connected to a Hikvision TURBO HD DVR with up to 5MP Resolution Capability. The HDTVI dome camera with a fixed wide angle 2.8mm lens, which gives an amazing 2592(H)*1944(V) resolution and Enhanced (EXIR) IR of up to 40m which provides an exceptional footage, even in dark conditions.

SPECIFICATION

• High-quality imaging with 5mp, 2560x1944
• 2.8mm fixed lens
• Up to 40m recording distance for bright night imaging
• Water and dust resistant
• IP67 weatherproof
• 12V DC
• POC Camera but can be used on Non-POC DVR's
• 2 Year Warranty

Key Features

DESCRIPTION

Tuck away all the terminals in this deep ring base for aesthetic looks. Clean finish for CCTV Cameras (Please contact us before purchasing, to ensure you choose the right base for your camera)

SPECIFICATION

• Parameters:  Junction box
• Colour:  Hik White
• Feature:  Suitable for bullet cameras
• Material:  Aluminum Alloy
• Cable gland size G¾
• Dimension:  Ø137 x 53.4 x 164.8mm
• Weight:  527g

DESCRIPITION

Hikvision's revolutionary Turbo HD technology brings with it a huge breakthrough in the evolution of analogue transmissions, opening up a whole new range of possibilities using coaxial cabling. The Turbo HD product family includes a comprehensive range of full high definition cameras and DVRs.

The DS-2CE78U1T-IT3F-2.8MM is a 4K 8mp ultra high definition turret dome that is packed with advanced features in an attractive and stylish casing. The popular turret dome shape is ideal for those wanting to add a discreet security camera that easily blends in into its surroundings.

FEATURES

• 8MP high resolution (4K)
• 4 in 1, can be used as TVI, CVI, AHD or Analogue camera
• 2.8mm fixed lens
• True day/night
• OSD menu
• Smart IR
• EXIR 2.0 technology
• Up to 60m IR distance
• IP67 weatherproof
• Up the Coax telemetry
• 105dB digital wide dynamic range
• 12V DC
• Available in White and Grey
• 2 Year Warranty

*PLEASE NOTE*

If the 8 channel option is not selectable, please choose the 4 camera option first and then the 8 channel option will be available to select

Hikvision NVR Key Features

• High Definition of real-time recording on all channels
• Live view from a smart device or Internet
• Easy smart search for motion events during playback
• Up to 8 MP resolution for recording
• HDMI output at up to 4K (3840 × 2160) resolution
• L transmission over UTP CAT6 / CAT5E SOLID COPPER
• 4/8/16 ch synchronous playback
• 2 Year Warranty

 CCTV Security Kit Specifications

NVR Third-party network cameras supported Up to 8 Megapixels resolution recording Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K resolution 8ch network cameras can be connected with 80M/160M incoming bandwidth Up to 2 SATA interfaces Plug & Play with up to 8 independent PoE network interfaces Support dual-os to ensure high reliability of system running Support various VCA detection alarm and VCA search Support H.265/H.264/MPEG4 video formats

Camera Features

Max. 2688 × 1520 @30fps 2.8mm fixed lens H.265+, H.264+ 120dB WDR 12 VDC & PoE (802.3af, class 3) Built-in micro SD/SDHC/SDXC slot, up to 128G BLC/3D DNR/HLC/ROI 0.0014 Lux @ (F1.0, AGC ON), 0 Lux with Light Full-time colour

What is Included:

• 1x NVR 4/8/16 Channel
• 1 X Surveillance HDD
• DS-2CD2347G2-LIU 4MP Hikvision 2.8MM IP ColorVU (White or Black)
• 20m Cat5e LAN Cable (Per Camera)
• 1x 2m HDMI cable
• 1x 3 PIN UK TYPE Manual & Mouse

Mobile Features

• Live view of your cameras from the Hik Connect app anywhere in the world

• Receive notifications on your phone when movement is detected

• Share mobile access to as many users as you require

If you require any of the following kits below:

• 16 Channel NVR with 6TB HDD and 16 Black Cameras
• 16 Channel NVR with 6TB HDD and 14 Black Cameras
• 16 Channel NVR with 6TB HDD and 16 White Cameras
• 16 Channel NVR with 6TB HDD and 14 White Cameras

Please contact us to purchase
