DESCRIPTION

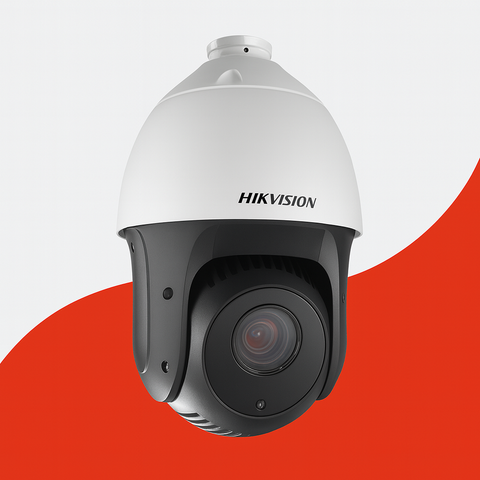

Hikvision DS-2DE4425IW-DE-T5 4 MP 25 × IR Network Speed Dome adopts 1/2.8" progressive scan CMOS chip. With the 25 × optical zoom lens, the camera offers more details over expansive areas. This series of cameras can be widely used for wide ranges of high-definition, such as the rivers, roads, railways, airports, squares, parks, scenic spots, and venues, etc.
SPECIFICATION
- 4MP resolution
- 25X optical zoom, 16X digital zoom
- 4.8 - 120mm
- Up to 100 IR distance
- IP66
- H.265+ compression
- Excellent low-light performance with powered-by-DarkFighter technology
- 3D intelligent positioning
- Accurate human and vehicle target classification
- Support face capture. Up to 5 faces captured at the same time
- 120dBWDR
- True day / night
- 12VDC, PoE
- Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
- Comes with DS-1618ZJ bracket
- 2 YEAR WARRANTY
Camera Module
Image Sensor: 1/2.8" progressive scan CMOS
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed: 1/1 s to 1/30000 s
Slow Shutter: yes
Focus: semi-auto, manual, auto
Day & Night: ICR
Day/Night Switch: day, night, auto, scheduled-switch
BLC: yes
WDR: 120 dB WDR
HLC: yes
3D DNR: yes
Defog: yes
EIS: yes
Regional Exposure: yes
Regional Focus: yes
Image Settings: saturation, brightness, contrast, sharpness
White Balance: auto, ATW, sodium lamp, fluorescent lamp, indoor, outdoor, MWB, Locked WB
Digital Zoom: 16 ×
Optical Zoom: 25 ×
Privacy Mask up to 24 masks, polygon region, mosaic mask, mask color configurable
SNR ＞52dB
Lens
Focal Length: 4.8 mm to 120 mm, 25 × Optical
Zoom Speed approx. 3.6 s
FOV: Horizontal field of view: 55° to 2.4° (wide-tele), Vertical field of view: 33° to 1.4° (wide-tele), Diagonal field of view: 61.5° to 2.8° (wide-tele)
Aperture: F1.6
PTZ
Movement Range (Pan) 360°
Movement Range (Tilt) -15° to 90°(auto flip)
Pan Speed pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
Tilt Speed tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
Proportional Zoom: yes
Presets: 300
Patrol Scan: 8 patrols, up to 32 presets for each patrol
Pattern Scan: 4 pattern scans
Power-off Memory: yes
Park Action: preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D Positioning: yes
PTZ Status Display: yes
Preset Freezing: yes
Scheduled Task: preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Video
Max. Resolution: 2560 × 1440
Stream Type: main stream, sub-stream, third stream
Main Stream: 50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream: 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression: H.265, H.264, MJPEG, Video Bit Rate 32 kbps to 16384 kbps, H.264 Type baseline profile, main profile, high profile, H.265 Type main profile
H.264+: yes
H.265+: yes
SVC: yes
ROI: dynamic face tracking, fixed region, main stream, sub-stream and third stream respectively support eight fixed areas
Audio
Audio Compression: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
Audio Bit rate MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps
Audio Sampling Rate MP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
Environment Noise Filtering: yes
Smart Features
Face Capture: yes
Basic Event: audio exception, motion detection, video tampering alarm, exception
Smart Event: intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Smart Record: ANR, Dual-VCA
Alarm Linkage: preset, patrol scan, pattern scan, memory card video recording, alarm output, sendin email, notify surveillance center, upload to FTP
Network
Network Storage: NAS (NFS, SMB/ CIFS), ANR
Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour API ISAPI, Hikvision SDK, Hik-Connect, ONVIF (Profile S, Profile G, Profile T), ISUP
Simultaneous Live View: 20
User/Host: 32
Smooth Streaming: yes
Security Measures Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
Client: iVMS-4200
Web Browser: IE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+
Interface
Communication Interface: RJ45, self-adaptive 10M/100M Ethernet port On-board Storage support microSD/microSDHC/microSDXC cards, up to 256 GB
Alarm Input: 1 alarm input
Alarm Output: 1 alarm output
Audio Input: 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%,
Audio Output: 1 audio output, line level, impedance: 600 Ω
Supplement Light
IR Distance: 100 m
General
Power 12 VDC, PoE (802.3at)
Power Consumption and Current Max. 24 W, including max. 9 W for supplement light
Operating Conditions -30°C to 65°C (-22°F to 149°F)
Reset: yes
Material ADC 12, PC, PC+10% GF
Dimensions Φ 164.5 mm × 290 mm (Φ 6.48" × 11.42")
Weight Approx. 2 kg (4.41 lb)
Approval
Protection IP66, 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
