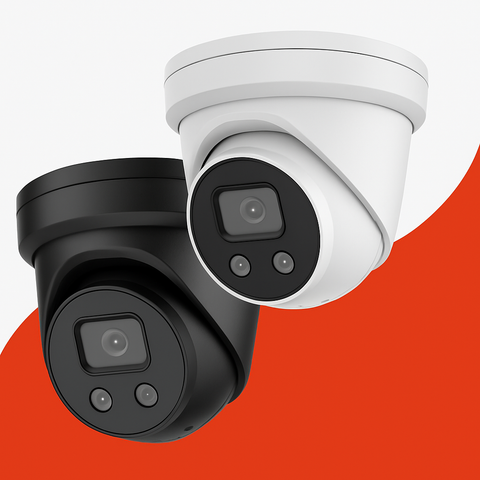

Camera
|
|
Image Sensor
|
1/1.8" Progressive Scan CMOS
|
|
Min. Illumination
|
Color: 0.003 Lux @ (F1.6, AGC ON), 0 Lux with IR
|
|
Shutter Speed
|
1/3 s to 1/100,000 s
|
|
Slow Shutter
|
128 MB
|
|
Day &Night
|
Progressive
|
|
Angle Adjustment
|
Auto/Manual 1/3 s–1/100,000 s
|
|
WDR
|
0.004 Lux@F1.0
|
|
Lens
|
|
Lens
|
Fixed lens, 2.8mm
|
|
Aperture
|
F1.6
|
|
FOV
|
2.8 mm, horizontal FOV: 102° , vertical FOV: 55° , diagonal FOV: 120° 4 mm,
|
|
horizontal FOV: 87.1° , vertical FOV: 47.4° , diagonal FOV: 101.8° 6 mm,
|
|
2.8 mm: F1.0horizontal FOV: 50.8° , vertical FOV: 27.6° , diagonal FOV: 60°
|
|
Field of View
|
2.8 mm: 96° (Horizontal) × 51° (Vertical) × 115° (Diagonal)
|
|
3.6 mm: 81° (Horizontal) × 44° (Vertical) × 97° (Diagonal)
|
|
Lens Mount
|
M16
|
|
Illuminator
|
|
IR Range
|
Up to 30 m
|
|
Wavelength
|
850 nm
|
|
Video
|
|
Max. Resolution
|
3840 × 2160
|
|
Main Stream
|
50Hz: 20fps (3840 × 2160, 3072 × 1728), 25fps (2688 × 1520,1920 × 1080, 1280 × 720) 60Hz: 20fps (3840 × 2160, 3072 × 1728), 30fps (2688 × 1520,1920 × 1080, 1280 × 720)
|
|
|
|
Sub Stream
|
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
|
|
Third Stream
|
50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
|
|
Video Compression
|
Main stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
|
|
H.264 Type
|
Baseline Profile/Main Profile/High Profile
|
|
H.265 Type
|
Main Profile
|
|
Video Bit Rate
|
32 Kbps to 16 Mbps
|
|
Scalable Video Coding (SVC)
|
H.264 and H.265 encoding support
|
|
Audio
|
|
Audio Compression
|
G.711/G.722.1/G.726/MP2L2/PCM/MP3
|
|
Audio Bit Rate
|
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
|
|
|
Environment Noise Filtering
|
Yes
|
|
Audio Sampling Rate
|
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
|
|
Smart Feature-Set
|
|
Basic Event
|
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection
|
|
|
Premier Protection
|
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (Human&Vehicle classification)
|
|
|
Region Of Interest
|
1 fixed region for main stream, sub-stream and third stream
|
|
Linkage Method
|
Upload to FTP/NAS/memory card, notify surveillance center, send email, alarm output, audible warning, trigger capture
|
|
|
|
Image Enhancement
|
BLC, HLC, 3D DNR
|
|
Image Setting
|
Saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
|
|
Day/Night Switch
|
Day/Night/Auto/Schedule
|
|
Network
|
|
Network Storage
|
microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR
|
|
Protocols
|
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
|
|
API
|
ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
|
|
Security
|
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
|
|
Simultaneous Live View
|
Up to 6 channels
|
|
User/Host
|
Up to 32 users, 3 levels: administrator, operator and user
|
|
Client
|
iVMS-4200, Hik-Connect, Hik-Central
|
|
Web Browser
|
Plug-in required live view: IE8+, Chrome 41.0-44, Firefox30.0-51, Safari8.0-11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+
|
|
Interface
|
|
Communication Interface
|
1 RJ45 10M/100M self-adaptive Ethernet port
|
|
Audio
|
Built-in microphone
|
|
On-Board Storage
|
Built-in micro SD slot, up to 256 GB
|
|
Approval
|
|
EMC
|
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
|
|
Safety
|
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
|
|
Chemistry
|
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
|
|
Protection
|
Ingress protection: IP66 (IEC 60529-2013), IK10(IEC 62262:2002)
|
|
General
|
|
Web Client Language
|
32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
|
|
General Function
|
Anti-flicker, three streams, heartbeat, mirror, privacy masks, pixel counter
|
|
Reset
|
Reset via reset button on camera body, web browser and client software
|
|
Startup And Operating
|
-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
|
|
Conditions
|
|
|
Storage Conditions
|
-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
|
|
Power Supply
|
12 VDC ± 25%, Φ 5.5 mm coaxial power plug; reverse polarity protection; PoE (802.3af, class 3)
|
|
Power Consumption And
|
12 VDC, 0.48 A, max. 5.8 W; PoE (802.3af, 36 V to 57 V), 0.19 A to 0.12 A, max. 6.8
|
|
Current
|
W
|
|
Dimensions
|
Camera: Φ 138.3 × 126.3 mm (Φ 5.4" × 5") With package: 170 × 170 × 150 mm (7" × 7" × 5.9")
|
|
Weight
|
Camera: approx. 740 g (1.6 lb.) With package: approx. 1060 g (2.3 lb.)
|
